The BEMRRC Layout

Specifications

Room Size - 26' x 45'

NCE DCC Control - tethered and wireless

Minimum Radius - Mainline 36", branch line 26"

Double track mainline - 7 scale miles with two passing sidings

Mountain Grade - 2.8%

Bench Work - L-Girder

Roadbed -

      1/2" homosote in the yard

      1/4" homabed in all other areas

Walthers Turnouts - Mainline #8, Branch lines #6

Turnout control - inhouse servo design.

THE main deck

Departing Seattle...

Departing from the Seattle Yard (upper right), trains go right hand running thru Ballard, past the Edmonds waterfront the yard at Everett followed by the Everett passenger station.  Arlington is next and then Burlington where the climb up the Cascade starts,  taking you to the second level.

The Second level

...Arriving Omak

The climb up the Cascades reaches Concrete and the coal minds of Diablo. The tracks then had down into valley of Mazama before arriving at Winthrop.  At Winthrop a branch line runs up to the logging camp at Twisp.  Departing Winthrop trains enter the final tunnel on the North Cascade Division exiting at the entrance to the yard at Omak.

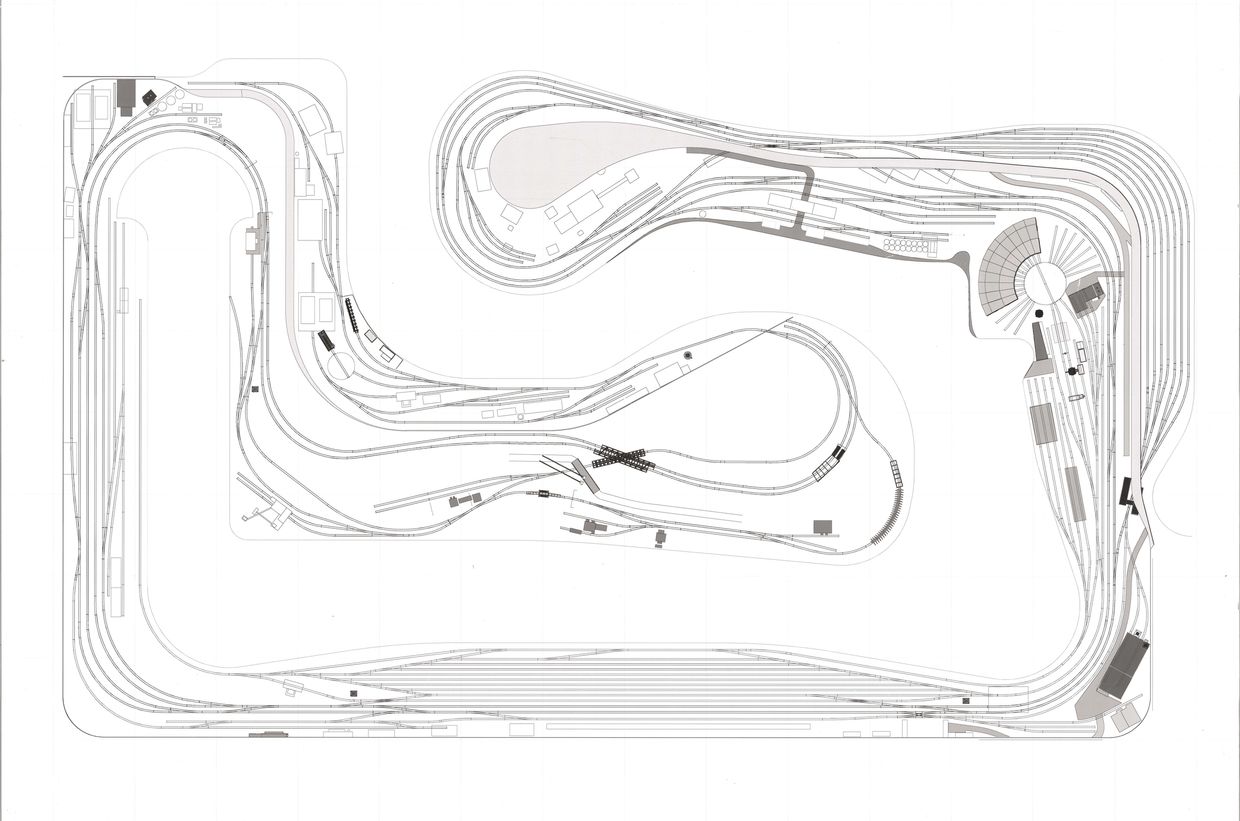

The route of the S&NC

The point-to-point schematic of the S&NC
